제품 상세 정보:
|
| 제품명: | 20KN 보편적 인장 시험기 | 최대 시험 하중: | 20KN |
|---|---|---|---|
| 전원공급장치: | AC220V 50Hz | 호스트 크기: | (W) 900 × (D) 500 × (H) 2305mm |
| 무게: | 175Kg | 실험공간(상하): | 1000mm |
| 테스트 너비: | 400mm | 보증: | 12개월 |
| 강조하다: | 20KN electronic tensile testing machine,universal testing machine with warranty,electronic universal testing machine 20KN |
||

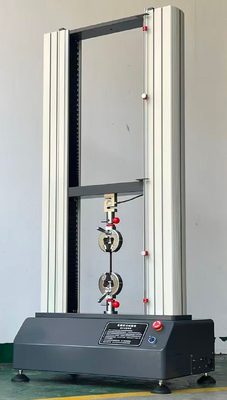

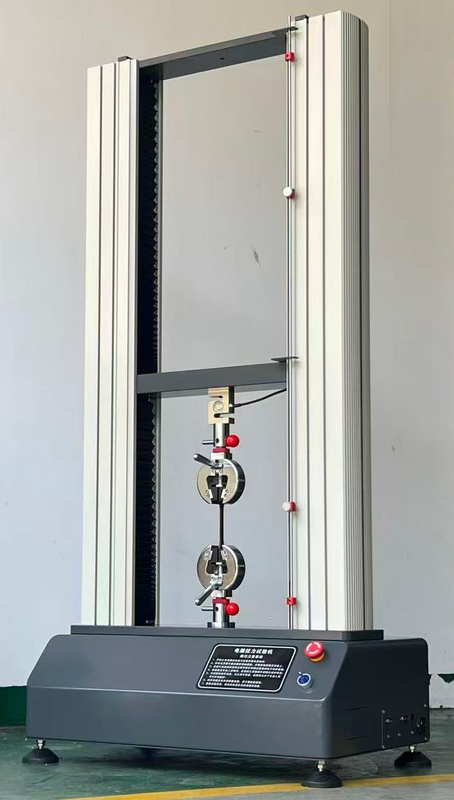

20KN Electronic Universal Testing Machine
Product introduction:
The electronic universal testing machine is suitable for testing, analyzing and researching the mechanical properties of plastics, metals, automotive industry, building materials, textiles, paper products, food and packaging, composite materials such as tension, compression, bending, shearing, peeling, tearing, holding, relaxation, and reciprocating.
Technical specifications:
| Item | Specification |
|---|---|
| Product Model | DX8329A |
| Unit Switching | Load: N, kgf, lb; Deformation: mm, in |
| Maximum Test Force | 20 kN |
| Test Force Measuring Range | 0.4%～100% FS (Full Scale) |
| Accuracy Grade | Class 0.5 |
| Indication Error of Test Force | Within ±0.5% of reading |
| Test Force Resolution | Up to 1/500000; non-graduated range with constant full-range resolution |
| Deformation Resolution | 1/300000 of maximum deformation |
| Displacement Indication Error | Within ±0.5% of reading |
| Displacement Resolution | 0.05 μm |
| Stress Control Rate Range | 0.005～5% FS/s |
| Stress Control Rate Accuracy | Within ±2% of set value when rate ＜ 0.05% FS/s;
|
| Strain Control Rate Range | 0.005～5% FS/s |
| Strain Control Rate Accuracy | Within ±2% of set value when rate ＜ 0.05% FS/s;
|
| Displacement Control Rate Range | Stepless speed regulation: 0.001～500 mm/min |
| Displacement Control Rate Accuracy | Within ±1% of set value when rate ＜ 0.5 mm/min;
|
| Control System | CCS electronic system + Single-board integrated technology with DSP & FPGA |
| Safety Protection | Mechanical limit + Software overload protection |
| Left & Right Test Width | 400 mm |
| Vertical Test Space | 1000 mm |
| Main Unit Dimensions (W×D×H) | 900 × 500 × 2305 mm |
| Main Unit Weight | 175 kg |
| Power Supply | 220 V / 50 Hz / 1.5 kW |
| FAQ |
Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.
Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.
Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.
Q:How about the payment term?
A: T/T, by cash, western union, or L/C.
Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
