제품 상세 정보:
|
| 배기 시스템: | 강력한 배기 팬(유량: 39~85m³/min) | 재료: | 304 스테인리스 스틸(버너, 캐비닛) 또는 부식 방지 도금이 적용된 A3 스틸 |
|---|---|---|---|
| 방열 온도 범위: | 400~600°C; 정확도: ±0.5°C; 오류: ±5°C | 점화 시스템: | 고전압 전자 점화 |
| 연소실 치수: | L1420×W1200×H2300mm | 적용범위: | 이 시험기는 겉보기 밀도가 250kg/m3 이상인 고체 물질 및 발포 플라스틱에 적합합니다. 재료 특성을 특성화하려면 두 가지 유형의 시험편이 필요합니다. |

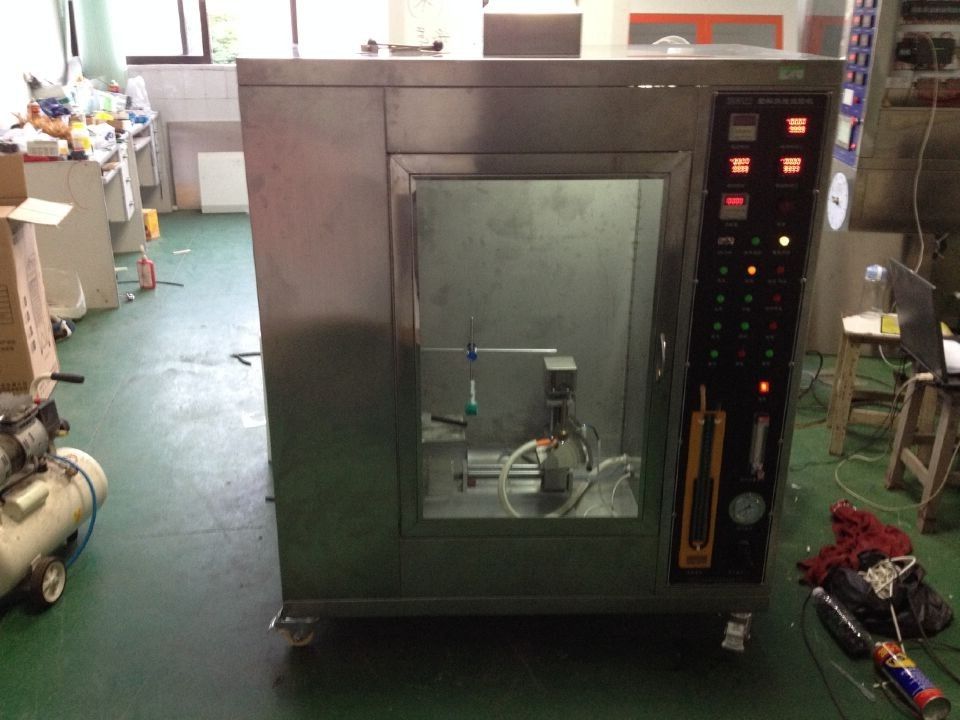

DX-8522 (500W) 5VA/5VB Plastic Burning Tester
The DX-8522 is a professional flammability testing instrument designed for solid materials and foamed plastics with an apparent density of ≥250 kg/m³. It evaluates both flammability and penetration resistance using the 500W flame test method, fully complying with international standards including GB/T 5169.17 (5VA/5VB), IEC 60695-11-20, UL94 5VA/5VB, ASTM D 5048, and ISO 10351.
The tester uses two specimen shapes: long rectangular bars for assessing burning characteristics, and square plates for penetration resistance. It features a 500W burner with adjustable flame dimensions (125mm outer, 40mm inner), a 0.75m³ enclosed black test chamber, a 20° combustion angle, and a 0-99.9s adjustable timer, ensuring accurate and repeatable test results.
Application Scope
This tester is suitable for solid materials and foamed plastics with an apparent density of 250 kg/m³ or higher. It requires two types of test specimens to characterize material properties:
- Long rectangular specimens are used to evaluate material flammability and burning time.
- Square specimens are used to assess material penetration resistance.
The test adopts the 500W flame method, complying with standards including:
- GB/T 5169.17 (5VA/5VB)
- IEC 60695-11-20
- UL94 (5VA/5VB)
- ASTM D 5048
- ISO 10351
Additional Notes (from full document context)
(Note: The upper section of the image includes parameters for a different test system, not directly belonging to the DX-8522, but listed here for reference)
- Heat flux meter range: (0–15) kW/m²; Accuracy: ±0.2 kW/m²; Error: ≤ ±3%
- Heat radiation temperature range: 400–600 °C; Accuracy: ±0.5 °C; Error: ±5 °C
- Combustion gas: Propane (customer-provided); Flow rate: (0.026 ± 0.002) L/s
- Ignition system: High-voltage electronic ignition
- Exhaust system: Strong exhaust fan (flow: 39–85 m³/min)
- Combustion chamber dimensions: L1420 × W1200 × H2300 mm
- Materials: 304 stainless steel (burner, cabinet) or A3 steel with anti-corrosion plating
